虚拟机网络管理

**官方文档：**https://wiki.libvirt.org/page/VirtualNetworking

QEMU-KVM 网络概述

支持的网络模式

NAT
- 此为virt-install的默认模式，使用的是IP伪装而不是 SNAT 或 DNAT
- 使用宿主机的IP与外界通信，从而实现实现虚拟机访问外网，而外网无法访问虚拟机
- 此模式下启动会产生很多iptables规则，请小心。如果 iptables 规则出现问题，您的虚拟机可能会停止正常通信。
Bridge
- 自定义网桥模式
直接分配物理网络设备
- 包括VT-d 和 SR-IOV，性能最好
自定义网络

虚拟机的网卡设备

RTL8139、e1000、…
virtio 生产中常用，性能最好

查看qemu-kvm支持的网卡型号：

[root@centos-kvm ~]# /usr/libexec/qemu-kvm -net nic,model=?
Supported NIC models:
e1000
e1000e
rtl8139
virtio-net-pci
virtio-net-pci-non-transitional
virtio-net-pci-transitional

—

QEMU 与 tap 设备

qemu 启动时通过 qemu -netdev tap 指定 tap 设备

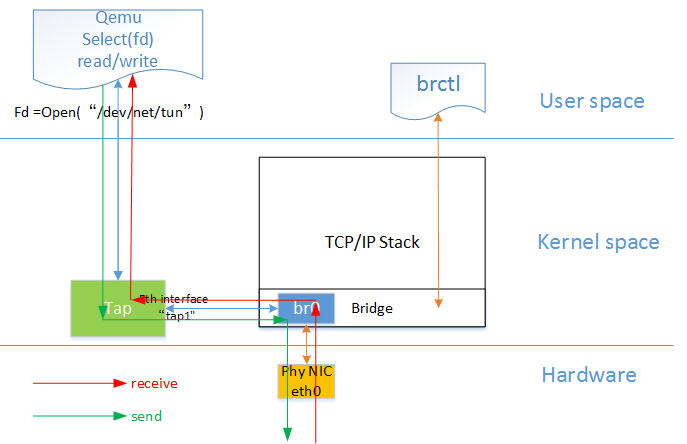

qemu tun

如图中所示，红色箭头表示数据报文的入方向，步骤：

网络数据从 Host 上的物理网卡接收，到达网桥；
由于 eth0 与 tap1 均加入网桥中，根据二层转发原则，br0 将数据从 tap1 口转发出去，即数据由 Tap设备接收；
Tap 设备通知对应的 fd 数据可读；
fd 的读动作通过 tap 设备的字符设备驱动将数据拷贝到用户空间，完成数据报文的前端接收。

—

KVM默认网络配置

默认为NAT模式，相当于wmware workstation的NAT模式
NAT模式不适用与生产环境


DHCP

默认宿主机安装了dnsmasp包来提供DHCP服务

#查看默认安装的dnsmasp包
[root@centos-kvm ~]# rpm -q dnsmasq
dnsmasq-2.79-13.el8.x86_64

#默认的dnsmasp配置文件，由libvirt自动创建
[root@centos-kvm ~]# cat /var/lib/libvirt/dnsmasq/default.conf
##WARNING:  THIS IS AN AUTO-GENERATED FILE. CHANGES TO IT ARE LIKELY TO BE
##OVERWRITTEN AND LOST.  Changes to this configuration should be made using:
##    virsh net-edit default
## or other application using the libvirt API.
##
## dnsmasq conf file created by libvirt
strict-order
pid-file=/run/libvirt/network/default.pid
except-interface=lo
bind-dynamic
interface=virbr0
dhcp-range=192.168.122.2,192.168.122.254,255.255.255.0 #可以修改地址范围等信息
dhcp-no-override
dhcp-authoritative
dhcp-lease-max=253
dhcp-hostsfile=/var/lib/libvirt/dnsmasq/default.hostsfile
addn-hosts=/var/lib/libvirt/dnsmasq/default.addnhosts

Bridge

相当于wmware workstation的Vmnet8网桥

虚拟机未开启时网桥状态

无任何虚拟机开启时，默认会生成一个 virbr0 的网桥，并且有一个virbr0-nic的网卡桥接到virbr0网桥上

#查看网桥状态
[root@centos-kvm ~]# brctl show
bridge name     bridge id               STP enabled     interfaces
virbr0          8000.525400ef6aec       yes             virbr0-nic


#查看哪些设备加入到了virbr0网桥
[root@centos-kvm ~]# ip link show master virbr0
5: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc fq_codel master virbr0 state DOWN mode DEFAULT group default qlen 1000
    link/ether 52:54:00:ef:6a:ec brd ff:ff:ff:ff:ff:ff

#查看所有桥接网卡信息及对应网桥
[root@centos-kvm ~]# bridge link show
5: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 master virbr0 state disabled priority 32 cost 100

# ip a
...
4: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
    link/ether 52:54:00:ef:6a:ec brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
       valid_lft forever preferred_lft forever
5: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc fq_codel master virbr0 state DOWN group default qlen 1000
    link/ether 52:54:00:ef:6a:ec brd ff:ff:ff:ff:ff:ff

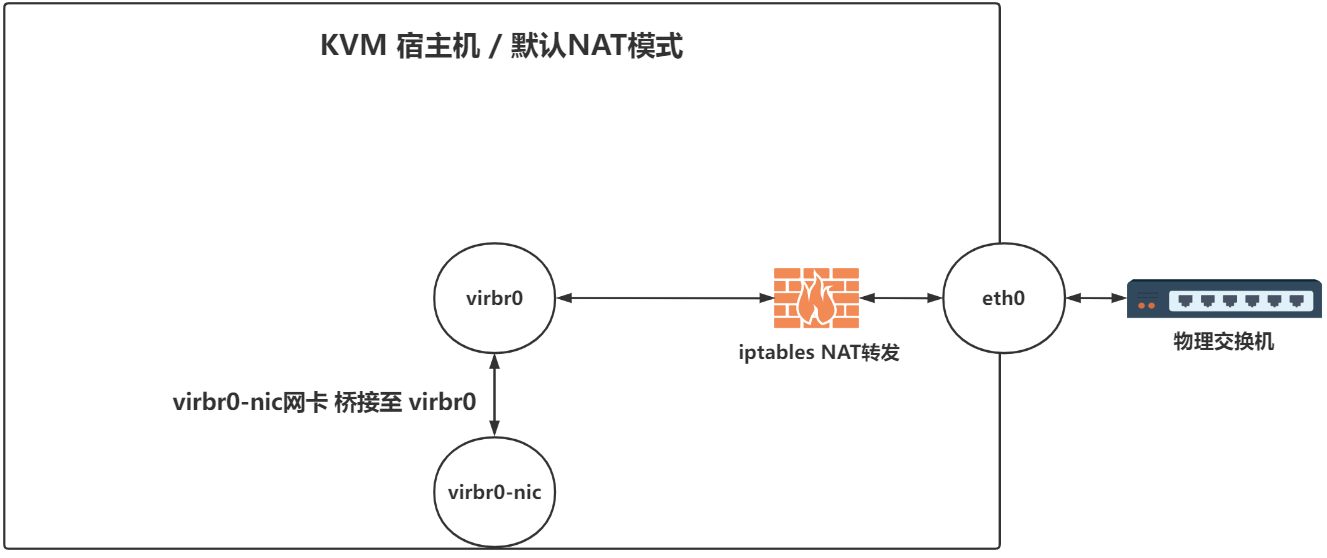

图解

虚拟机开启后网桥状态

开启虚拟机后，会按照顺序依次生成vnet0(1、2、3…) 的临时虚拟网卡，同样桥接到virbr0的网桥上

#查看网桥状态
[root@centos-kvm ~]# brctl show
bridge name     bridge id               STP enabled     interfaces
virbr0          8000.525400ef6aec       yes             virbr0-nic
                                                        vnet0

#查看virbr0网桥的网络状态，可以看到virbr0-nic 和 vnet0这两块网卡以及桥接到virbr0网桥上了
[root@centos-kvm ~]# ip link show master virbr0
5: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc fq_codel master virbr0 state DOWN mode DEFAULT group default qlen 1000
    link/ether 52:54:00:ef:6a:ec brd ff:ff:ff:ff:ff:ff
8: vnet0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel master virbr0 state UNKNOWN mode DEFAULT group default qlen 1000
    link/ether fe:54:00:aa:fc:1c brd ff:ff:ff:ff:ff:ff

#查看所有桥接网卡信息及对应网桥
[root@centos-kvm ~]# bridge link show
5: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 master virbr0 state disabled priority 32 cost 100
8: vnet0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 master virbr0 state forwarding priority 32 cost 100

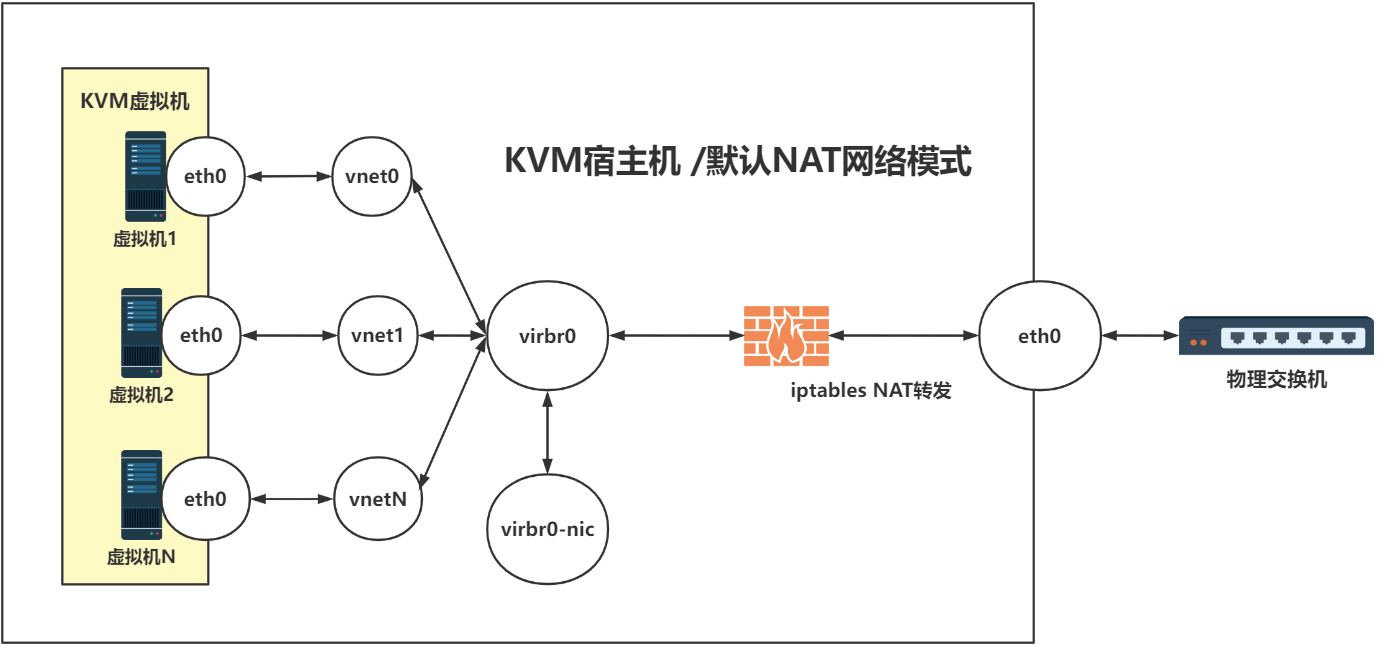

图解

iptables

以下规则由libvirtd服务启动时自动生成，从而实现SNAT，即内网访问外网，而外网无法访问内网

[root@centos-kvm ~]# iptables -vnL -t nat
...
Chain LIBVIRT_PRT (1 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 RETURN     all  --  *      *       192.168.122.0/24     224.0.0.0/24
    0     0 RETURN     all  --  *      *       192.168.122.0/24     255.255.255.255
    0     0 MASQUERADE  tcp  --  *      *       192.168.122.0/24    !192.168.122.0/24     masq ports: 1024-65535
    0     0 MASQUERADE  udp  --  *      *       192.168.122.0/24    !192.168.122.0/24     masq ports: 1024-65535
    0     0 MASQUERADE  all  --  *      *       192.168.122.0/24    !192.168.122.0/24

默认虚拟机与外界通信

环境

KVM1

宿主机：
- eth0：10.0.0.8 VMnet8 NAT

虚拟机：

[root@centos-kvm1 ~]# virsh list
 Id   Name      State
-------------------------
 1    centos7   running

[root@centos-kvm1 ~]# virsh domiflist centos7
 Interface   Type      Source    Model    MAC
-------------------------------------------------------------
 vnet0       network   default   virtio   52:54:00:aa:fc:1c

[root@centos-kvm1 ~]# virsh domifaddr centos7
 Name       MAC address          Protocol     Address
-------------------------------------------------------------------------------
 vnet0      52:54:00:aa:fc:1c    ipv4         192.168.122.208/24

[root@centos-kvm1 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:0b:14:8b brd ff:ff:ff:ff:ff:ff
    inet 10.0.0.8/16 brd 10.0.255.255 scope global noprefixroute eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe0b:148b/64 scope link
       valid_lft forever preferred_lft forever
3: virbr0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 52:54:00:ef:6a:ec brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
       valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc fq_codel master virbr0 state DOWN group default qlen 1000
    link/ether 52:54:00:ef:6a:ec brd ff:ff:ff:ff:ff:ff
6: vnet0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel master virbr0 state UNKNOWN group default qlen 1000
    link/ether fe:54:00:aa:fc:1c brd ff:ff:ff:ff:ff:ff
    inet6 fe80::fc54:ff:feaa:fc1c/64 scope link
       valid_lft forever preferred_lft forever

[root@centos-kvm1 ~]# brctl show
bridge name	bridge id		STP enabled	interfaces
virbr0		8000.525400ef6aec	yes		virbr0-nic #virbr0-nic表示virbr0的网卡
							            vnet0

KVM2

宿主机：
- eth0：10.0.0.18 VMnet8 NAT

虚拟机：

[root@centos-kvm2 ~]# virsh list
 Id   Name      State
-------------------------
 1    centos7   running

[root@centos-kvm2 ~]# virsh domiflist centos7
 Interface   Type      Source    Model    MAC
-------------------------------------------------------------
 vnet0       network   default   virtio   52:54:00:7e:e2:fd

[root@centos-kvm2 ~]# virsh domifaddr centos7
 Name       MAC address          Protocol     Address
-------------------------------------------------------------------------------
 vnet0      52:54:00:7e:e2:fd    ipv4         192.168.122.211/24

[root@centos-kvm2 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:d0:8e:57 brd ff:ff:ff:ff:ff:ff
    inet 10.0.0.18/16 brd 10.0.255.255 scope global noprefixroute eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fed0:8e57/64 scope link
       valid_lft forever preferred_lft forever
3: virbr0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 52:54:00:ff:56:99 brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
       valid_lft forever preferred_lft forever
4: vnet0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master virbr0 state UNKNOWN group default qlen 1000
    link/ether fe:54:00:7e:e2:fd brd ff:ff:ff:ff:ff:ff
    inet6 fe80::fc54:ff:fe7e:e2fd/64 scope link
       valid_lft forever preferred_lft forever

[root@centos-kvm2 ~]# brctl show
bridge name	bridge id		STP enabled	interfaces
virbr0		8000.525400ff5699	yes		vnet0

与互联网通信

结论：
- 虚拟机可以ping通互联网，因为虚拟机走的是SNAT
工作过程：
- 当虚拟机启动后，除虚拟机自身会生成eth0网卡外，还会在宿主机生成一块vnet0的网卡，而宿主机生成的vnet0网卡都是桥接在virbr0这个网桥上的，虚拟机的报文会通过宿主机的DNAT转换也就是所谓的 Address Masquerading 地址伪装出去的
- 桥接网卡的IP可以直接访问
报文流向：
- 虚拟机eth0 <–> 宿主机vnet0 <–> 宿主机virbr0 <–> 宿主机iptables <–> 宿主机eth0 <–> internet
简述：
- 就相当于宿主机自身访问互联网

范例

#登录到虚拟机
[root@centos-kvm1 ~]# ssh 192.168.122.208
root@192.168.122.208's password:
Last login: Wed Apr  6 18:40:02 2022 from 10.0.0.201

#访问互联网
[root@localhost ~]# ping www.baidu.com
PING www.a.shifen.com (36.152.44.96) 56(84) bytes of data.
64 bytes from 36.152.44.96 (36.152.44.96): icmp_seq=1 ttl=127 time=43.0 ms
...

与其他宿主机通信

结论：
- 虚拟机可以与其他宿主机通信，因为虚拟机走的是SNAT
工作过程：
- 当虚拟机启动后，除虚拟机自身会生成eth0网卡外，还会在宿主机生成一块vnet0的网卡，而宿主机生成的vnet0网卡都是桥接在virbr0这个网桥上的，虚拟机的报文会通过宿主机的DNAT转换也就是所谓的 Address Masquerading 地址伪装出去的
报文流向：
- 虚拟机eth0 <–> 宿主机vnet0 <–> 宿主机iptables <–> 宿主机eth0 <–> internet
简述：
- 就相当于宿主机自身访问其他宿主机

范例

#登录到虚拟机
[root@centos-kvm1 ~]# ssh 192.168.122.208
root@192.168.122.208's password:
Last login: Wed Apr  6 18:40:02 2022 from 10.0.0.201

#访问其他宿主机
[root@localhost ~]# ping 10.0.0.18
PING 10.0.0.18 (10.0.0.18) 56(84) bytes of data.
64 bytes from 10.0.0.18: icmp_seq=1 ttl=64 time=2.15 ms
...

#其他宿主机抓包
[root@centos-kvm2 ~]# tcpdump -nn icmp
...
16:18:50.914048 IP 10.0.0.8 > 10.0.0.18: ICMP echo request, id 3195, seq 1, length 64
16:18:50.914175 IP 10.0.0.18 > 10.0.0.8: ICMP echo reply, id 3195, seq 1, length 64
...

与其他宿主机中的虚拟机进行通信

结论：
- 无法通信，因为都在各自的NAT网络中

范例

[root@centos-kvm1 ~]# ping -c1 192.168.122.211
PING 192.168.122.211 (192.168.122.211) 56(84) bytes of data.
From 192.168.122.1 icmp_seq=1 Destination Host Unreachable

--- 192.168.122.211 ping statistics ---
1 packets transmitted, 0 received, +1 errors, 100% packet loss, time 0ms

默认外界与虚拟机通信

环境

参阅上文

#外部主机无法访问虚拟机，因为虚拟机走的是SNAT
C:\Users\阿征>ping 192.168.122.208

正在 Ping 192.168.122.208 具有 32 字节的数据:
请求超时。

192.168.122.208 的 Ping 统计信息:
    数据包: 已发送 = 4，已接收 = 0，丢失 = 4 (100% 丢失)，

—

KVM网络管理相关命令

以下命令全部都在宿主机执行
相关信息其实就是调用了此文件中的内容：/etc/libvirt/qemu/centos7.xml

查看虚拟机的网卡配置

#默认NAT网络
# virsh domiflist centos7
 Interface   Type      Source    Model    MAC
-------------------------------------------------------------
 -           network   default   virtio   52:54:00:aa:fc:1c

#桥接到宿主机eth0
# virsh domiflist centos7
 Interface   Type     Source   Model    MAC
-----------------------------------------------------------
 macvtap0    direct   eth0     virtio   52:54:00:aa:fc:1c

查看虚拟机的网卡地址信息

需要虚拟机开启，否则将无法获取虚拟机的IP地址

# virsh domifaddr centos7-3
 Name       MAC address          Protocol     Address
-------------------------------------------------------------------------------
 vnet0      52:54:00:23:d4:db    ipv4         192.168.122.63/24

查看虚拟机指定网卡的状态

# virsh domifstat centos7-3 --interface vnet0
vnet0 rx_bytes 20302 #接受的字节大小
vnet0 rx_packets 326
vnet0 rx_errs 0
vnet0 rx_drop 0
vnet0 tx_bytes 6851 #发送的字节大小
vnet0 tx_packets 84
vnet0 tx_errs 0
vnet0 tx_drop 0

列出目前已有的网络

# virsh net-list
 Name      State    Autostart   Persistent
--------------------------------------------
 default   active   yes         yes

列出指定网络的详细配置

下面以查看默认的default网络详细信息（也就是nat网络模式）

# virsh net-dumpxml default
<network>
  <name>default</name>
  <uuid>1064e2fe-d78e-4690-84a1-9f043b84b643</uuid>
  <forward mode='nat'>
    <nat>
      <port start='1024' end='65535'/>
    </nat>
  </forward>
  <bridge name='virbr0' stp='on' delay='0'/>
  <mac address='52:54:00:ef:6a:ec'/>
  <ip address='192.168.122.1' netmask='255.255.255.0'>
    <dhcp>
      <range start='192.168.122.2' end='192.168.122.254'/>
    </dhcp>
  </ip>
</network>

本质上就是调用此文件的内容

# cat /etc/libvirt/qemu/networks/default.xml
<!--
WARNING: THIS IS AN AUTO-GENERATED FILE. CHANGES TO IT ARE LIKELY TO BE
OVERWRITTEN AND LOST. Changes to this xml configuration should be made using:
  virsh net-edit default
or other application using the libvirt API.
-->

<network>
  <name>default</name>
  <uuid>1064e2fe-d78e-4690-84a1-9f043b84b643</uuid>
  <forward mode='nat'/>
  <bridge name='virbr0' stp='on' delay='0'/>
  <mac address='52:54:00:ef:6a:ec'/>
  <ip address='192.168.122.1' netmask='255.255.255.0'>
    <dhcp>
      <range start='192.168.122.2' end='192.168.122.254'/>
    </dhcp>
  </ip>
</network>

—

将虚拟网络流量限制到特定接口

虚拟网络可以连接到物理网络。它的流量还可以被限制为使用特定接口
例如在具有 eth0/1/2 的系统上，可以限制虚拟网络仅使用 eth0
但是，这只在路由和 nat 模式下才有意义
在创建新的虚拟网络时，可以在 XML（dev="" 属性）或 virt-manager 中定义限制

—

实现虚拟机网卡桥接到宿主机的物理网卡

因为默认虚拟机的网卡是桥接到宿主机的 virbr0 网桥，而 virbr0 网桥是无法和其他宿主机间进行通信的
而将虚拟机网卡桥接到宿主机的物理网卡后，只要宿主机能与其他的虚拟机的宿主机进行通信，那么就可以实现跨宿主机的虚拟机与虚拟机之间的通信
相当于 wmware workstation 中的 Vmnet0

图解

…

实现

所有虚拟机的宿主机都执行：

#centos or Ubuntu
export DISPLAY=10.0.0.1:0.0

virt-manager

选择一个虚拟机然后双击
点击💡
NIC :xx:xx:xx –> Details
- Network source
  - Host device eth0: macvtap
- Source mode
  - Bridge
- Device mode
  - virtio
- Apply

实现后

# virsh domiflist centos7
 Interface   Type     Source   Model    MAC
-----------------------------------------------------------
 macvtap0    direct   eth0     virtio   52:54:00:aa:fc:1c

测试

问题

宿主机无法ssh到虚拟机，但在windows可以ping通？？？
另外一台主机在添加的时候为什么没有 Host device eth0: macvtap 这个选项？？？

—

实现基于自定义网桥的虚拟网络

原理

将宿主机的eth0网卡和宿主机的eth0网卡都桥接到自定义的网桥上，从而实现跨宿主机的虚拟机间通信

创建自定义网桥

所有宿主机都进行此操作

centos

写配置文件创建

注意：写静态文件有时候加载配置文件后也会无法连接到宿主机？？？，解决方法？？？

初始状态

# nmcli connection
NAME    UUID                                  TYPE      DEVICE
eth0    5fb06bd0-0bb0-7ffb-45f1-d6edd65f3e03  ethernet  eth0
virbr0  de813b16-d55d-4983-82cd-82fb7d44aa17  bridge    virbr0

写配置文件创建

# cat /etc/sysconfig/network-scripts/ifcfg-virbr1
TYPE=Bridge
NAME=virbr1
DEVICE=virbr1
STP=yes
BOOTPROTO=none
IPADDR=10.0.0.88
PREFIX=24
GATEWAY=10.0.0.2
ONBOOT=yes
DNS1=180.76.76.76
DNS2=223.5.5.5

使配置文件生效

# nmcli connection reload
# nmcli connection up virbr1
Connection successfully activated (master waiting for slaves) (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/10)

# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         10.0.0.2        0.0.0.0         UG    100    0        0 eth0
0.0.0.0         10.0.0.2        0.0.0.0         UG    426    0        0 virbr1
10.0.0.0        0.0.0.0         255.255.255.0   U     101    0        0 eth0
10.0.0.0        0.0.0.0         255.255.255.0   U     426    0        0 virbr1
10.0.0.0        0.0.0.0         255.255.0.0     U     100    0        0 eth0
192.168.122.0   0.0.0.0         255.255.255.0   U     425    0        0 virbr0

# nmcli connection
NAME    UUID                                  TYPE      DEVICE
eth0    5fb06bd0-0bb0-7ffb-45f1-d6edd65f3e03  ethernet  eth0
virbr0  9bab7bc4-8462-4013-a378-1f65274045a3  bridge    virbr0
virbr1  282db82c-a36d-fb08-d7a9-78ef62fac87e  bridge    virbr1

# ip link show master virbr1
空

# bridge link show
空

将eth0网卡加入到自定义网桥

写配置文件，永久生效

# cat /etc/sysconfig/network-scripts/ifcfg-eth0
TYPE=Ethernet
DEVICE=eth0
NAME=eth0
ONBOOT=yes
BRIDGE=virbr1

命令行添加，临时生效

# brctl addif virbr1 eth0

#使其生效
# nmcli connection reload
# nmcli connection up eth0

登录测试

# ssh 10.0.0.88
The authenticity of host '10.0.0.88 (10.0.0.88)' can't be established.
ECDSA key fingerprint is SHA256:LMMMtet8FFLvX4xwl2ykQhhB/5ffCO6zMiwn5OsNRXg.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '10.0.0.88' (ECDSA) to the list of known hosts.
root@10.0.0.88's password:

# nmcli connection
NAME    UUID                                  TYPE      DEVICE
virbr1  282db82c-a36d-fb08-d7a9-78ef62fac87e  bridge    virbr1
virbr0  9bab7bc4-8462-4013-a378-1f65274045a3  bridge    virbr0
eth0    5fb06bd0-0bb0-7ffb-45f1-d6edd65f3e03  ethernet  eth0

# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         10.0.0.2        0.0.0.0         UG    426    0        0 virbr1
10.0.0.0        0.0.0.0         255.255.255.0   U     426    0        0 virbr1
192.168.122.0   0.0.0.0         255.255.255.0   U     425    0        0 virbr0

# ip link show master virbr1
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel master virbr1 state UP mode DEFAULT group default qlen 1000
    link/ether 00:0c:29:d0:8e:57 brd ff:ff:ff:ff:ff:ff

# bridge link show
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 master virbr1 state forwarding priority 32 cost 100


# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel master virbr1 state UP group default qlen 1000
    link/ether 00:0c:29:d0:8e:57 brd ff:ff:ff:ff:ff:ff
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000
    link/ether 52:54:00:fe:17:91 brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
       valid_lft forever preferred_lft forever
9: virbr1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 00:0c:29:d0:8e:57 brd ff:ff:ff:ff:ff:ff
    inet 10.0.0.88/24 brd 10.0.0.255 scope global noprefixroute virbr1
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fed0:8e57/64 scope link
       valid_lft forever preferred_lft forever

通过命令行创建

注意：通过命令创建网桥而生成的文件一般后续还要加以修改
此方式有问题
初始状态

[root@centos-kvm2 ~]# nmcli connection
NAME    UUID                                  TYPE      DEVICE
eth0    5fb06bd0-0bb0-7ffb-45f1-d6edd65f3e03  ethernet  eth0
virbr0  9bab7bc4-8462-4013-a378-1f65274045a3  bridge    virbr0

通过命令行创建
注意：通过命令创建的网桥创建后会自动启动下面命令执行后会和宿主机断开连接且无法连接(为什么？？？)，除非将virbr1这个网桥down掉，所以最好还是通过写配置文件的方式创建

[root@centos-kvm2 ~]# nmcli connection add con-name virbr1 type bridge ifname virbr1 ipv4.method manual ipv4.addresses 10.0.0.88/24 ipv4.gateway 10.0.0.2
Connection 'virbr1' (b1aa3849-e990-465a-b300-08d5e91e6da3) successfully added.

创建后生成的文件

[root@centos-kvm2 ~]# cat /etc/sysconfig/network-scripts/ifcfg-virbr1
STP=yes
BRIDGING_OPTS=priority=32768
TYPE=Bridge
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=none
IPADDR=10.0.0.88
PREFIX=24
GATEWAY=10.0.0.2
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=virbr1
UUID=2f95f5ad-a549-4262-96ef-2201236ee920
DEVICE=virbr1
ONBOOT=yes

创建后生成的规则
然后就无法ssh连接到宿主机了

[root@centos-kvm2 ~]# nmcli connection show
NAME    UUID                                  TYPE      DEVICE
eth0    5fb06bd0-0bb0-7ffb-45f1-d6edd65f3e03  ethernet  eth0
virbr0  9bab7bc4-8462-4013-a378-1f65274045a3  bridge    virbr0
virbr1  2f95f5ad-a549-4262-96ef-2201236ee920  bridge    virbr1

ubuntu

写配置文件创建

参阅pdf或自写笔记

通过virt-manager修改原有虚拟机配置测试

修改前环境

#kvm1
[root@centos-kvm1 ~]# virsh domiflist centos7
 Interface   Type      Source    Model    MAC
-------------------------------------------------------------
 vnet0       network   default   virtio   52:54:00:aa:fc:1c
[root@centos-kvm1 ~]# virsh domifaddr centos7
 Name       MAC address          Protocol     Address
-------------------------------------------------------------------------------
 vnet0      52:54:00:aa:fc:1c    ipv4         192.168.122.208/24


#kvm2
[root@centos-kvm2 ~]# virsh domiflist centos7
 Interface   Type      Source    Model    MAC
-------------------------------------------------------------
 vnet0       network   default   virtio   52:54:00:7e:e2:fd
[root@centos-kvm2 ~]# virsh domifaddr centos7
 Name       MAC address          Protocol     Address
-------------------------------------------------------------------------------
 vnet0      52:54:00:7e:e2:fd    ipv4         192.168.122.211/24

修改

所有虚拟机的宿主机都执行：

#centos or Ubuntu
export DISPLAY=10.0.0.1:0.0

virt-manager

选择一个虚拟机然后双击
点击💡
NIC :xx:xx:xx –> Details
- Network source
  - Bridge device …
  - Device name：virbr1
- Source mode
  - Bridge
- Device mode
  - virtio
- Apply
重启虚拟机，重启后因为是与宿主机的eth0网卡共同桥接在virbr1网桥上，所以会使用wmnet8也就是NAT网卡的DHCP服务获取IP地址

修改后环境

#kvm1
[root@centos-kvm1 ~]# virsh domiflist centos7
 Interface   Type      Source    Model    MAC
-------------------------------------------------------------
 vnet0       network   default   virtio   52:54:00:aa:fc:1c
[root@centos-kvm1 ~]# virsh domifaddr centos7
 Name       MAC address          Protocol     Address
-------------------------------------------------------------------------------
需要进入到虚拟机查看，这里看不到，这里获取的地址是10.0.0.208
因为是与宿主机的eth0网卡共同桥接在virbr1网桥上，所以会使用wmnet8也就是NAT网卡的DHCP服务获取IP地址


#kvm2
[root@centos-kvm2 ~]# virsh domiflist centos7
 Interface   Type     Source   Model    MAC
-----------------------------------------------------------
 vnet0       bridge   virbr1   virtio   52:54:00:7e:e2:fd

[root@centos-kvm2 ~]# virsh domifaddr centos7
 Name       MAC address          Protocol     Address
-------------------------------------------------------------------------------
需要进入到虚拟机查看，这里看不到，这里获取的地址是10.0.0.210
因为是与宿主机的eth0网卡共同桥接在virbr1网桥上，所以会使用wmnet8也就是NAT网卡的DHCP服务获取IP地址

修改后宿主机的变化

开启的虚拟机在宿主机生成vnet0 网卡，而vnet0又桥接到virbr1网桥上

[root@centos-kvm1 ~]# ip link show master virbr1
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel master virbr1 state UP mode DEFAULT group default qlen 1000
    link/ether 00:0c:29:0b:14:8b brd ff:ff:ff:ff:ff:ff
5: vnet0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel master virbr1 state UNKNOWN mode DEFAULT group default qlen 1000
    link/ether fe:54:00:aa:fc:1c brd ff:ff:ff:ff:ff:ff


[root@centos-kvm2 ~]# ip link show master virbr1
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel master virbr1 state UP mode DEFAULT group default qlen 1000
    link/ether 00:0c:29:d0:8e:57 brd ff:ff:ff:ff:ff:ff
10: vnet0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master virbr1 state UNKNOWN mode DEFAULT group default qlen 1000
    link/ether fe:54:00:7e:e2:fd brd ff:ff:ff:ff:ff:ff

测试

[root@localhost ~]# ping 10.0.0.210
...
64 bytes from 10.0.0.210: icmp_seq=1 ttl=64 time=4.12 ms
...

[root@localhost2 ~]# ping 10.0.0.208
...
64 bytes from 10.0.0.208: icmp_seq=1 ttl=64 time=1.97 ms
...

------------------------------------------------------------------------------

[root@localhost ~]# ping www.baidu.com
...
64 bytes from 36.152.44.95 (36.152.44.95): icmp_seq=1 ttl=128 time=41.1 ms
...
[root@localhost2 ~]# ping www.baidu.com
...
64 bytes from 36.152.44.95 (36.152.44.95): icmp_seq=1 ttl=128 time=42.8 ms
...

------------------------------------------------------------------------------

[root@localhost ~]# cat /etc/resolv.conf
# Generated by NetworkManager
search localdomain
nameserver 10.0.0.2

[root@localhost2 ~]# cat /etc/resolv.conf
# Generated by NetworkManager
search localdomain
nameserver 10.0.0.2

本质上变化的内容

#修改前
# /etc/libvirt/qemu/centos7.xml
...
    <interface type='network'>
      <mac address='52:54:00:aa:fc:1c'/>
      <source network='default'/>
...

#修改后
# /etc/libvirt/qemu/centos7.xml
...
    <interface type='bridge'>
      <mac address='52:54:00:aa:fc:1c'/>
      <source bridge='virbr1'/>
...

创建新的虚拟机测试

创建新的虚拟机时指定桥接网络
PXE实现准备过程参阅 KVM pdf 或 OS install笔记
注意：ks文件的虚拟磁盘要改为vda

#创建虚拟磁盘
qemu-img create -f qcow2 /var/lib/libvirt/images/centos7-pxe.qcow2 200G

#创建自定义网桥的虚拟机
virt-install --virt-type kvm --name centos7 --memory 2048 --vcpus 2 --disk bus=virtio,path=/var/lib/libvirt/images/centos7-pxe.qcow2 --graphics vnc,listen=0.0.0.0 --network=bridge:virbr1,model=virtio --pxe

—

实现用户自定义的隔离的虚拟网络

即虚拟机的网卡桥接到宿主机的网桥上，而宿主机的网桥不再与宿主机的eth0等设备连接，从而实现隔离的虚拟网络
因为每个虚拟机只能在宿主机互相通信，而不能跨宿主机虚拟机与虚拟机间通信，所以生产中很少使用

虚拟机网络管理

QEMU-KVM 网络概述

支持的网络模式

虚拟机的网卡设备

—

QEMU 与 tap 设备

—

KVM默认网络配置

DHCP

Bridge

虚拟机未开启时网桥状态

图解

虚拟机开启后网桥状态

图解

iptables

默认虚拟机与外界通信

环境

KVM1

KVM2

与互联网通信

范例

与其他宿主机通信

范例

与其他宿主机中的虚拟机进行通信

范例

默认外界与虚拟机通信

环境

—

KVM网络管理相关命令

查看虚拟机的网卡配置

查看虚拟机的网卡地址信息

查看虚拟机指定网卡的状态

列出目前已有的网络

列出指定网络的详细配置

本质上就是调用此文件的内容

—

将虚拟网络流量限制到特定接口

—

实现 虚拟机网卡桥接到宿主机的物理网卡

图解

实现

实现后

测试

问题

—

实现 基于自定义网桥的虚拟网络

原理

创建自定义网桥

centos

写配置文件创建

初始状态

写配置文件创建

使配置文件生效

将eth0网卡加入到自定义网桥

登录测试

通过命令行创建

ubuntu

写配置文件创建

通过virt-manager修改原有虚拟机配置测试

修改前环境

修改

修改后环境

修改后宿主机的变化

测试

本质上变化的内容

创建新的虚拟机测试

—

实现 用户自定义的隔离的虚拟网络

实现虚拟机网卡桥接到宿主机的物理网卡

实现基于自定义网桥的虚拟网络

实现用户自定义的隔离的虚拟网络
